FastAPI with SQLAlchemy, PostgreSQL and Alembic and of course Docker [Part-1]

The comprehensive guide (tutorial) to using relational databases with FastAPI

Intro

The purpose of this article is to create a simple guide on how to use FastAPI with relational databases and use Alembic for migrations. An implementation that can be used in production

Installation

I will be using pipenv to manage both my packages and the virtual environment. Feel free to manage your own packages in any way you like

  • python ≥ 3.5
  • fastapi
  • pydantic
  • fastapi-sqlalchemy
  • alembic
  • psycopg2
  • uvicorn

lets create a new directory (you can call it whatever you want)

i will call it fastapi_sqlalchemy_alembic

open the terminal and write

cd fastapi_sqlalchemy_alembic

pipenv install --three fastapi fastapi-sqlalchemy pydantic alembic psycopg2 uvicorn

I will be using docker compose to manage the database, you might get some errors regarding install psycopg2 if you are using Mac-OS but since we will use docker anyways, we would not care so much about it.

lets start with a simple main.py for Fastapi

main.py

import uvicorn
from fastapi import FastAPI
app = FastAPI()
@app.post("/user/", response_model=User)
def create_user(user: User):
return user
if __name__ == "__main__":
uvicorn.run(app, host="0.0.0.0", port=8000)

Dockerfile

# Pull base image
FROM python:3.7

# Set environment varibles
ENV PYTHONDONTWRITEBYTECODE 1
ENV PYTHONUNBUFFERED 1

WORKDIR /code/

# Install dependencies
RUN pip install pipenv
COPY Pipfile Pipfile.lock /code/
RUN pipenv install --system --dev

COPY . /code/

EXPOSE 8000

docker-compose.yml

version: "3"

services:
db:
image: postgres:11
ports:
- "5432:5432"
environment:
- POSTGRES_USER=postgres
- POSTGRES_PASSWORD=postgres
- POSTGRES_DB=test_db
web:
build: .
command: bash -c "alembic upgrade head && uvicorn main:app --host 0.0.0.0 --port 8000 --reload"
volumes:
- .:/code
ports:
- "8000:8000"
depends_on:
- db

pgadmin:
container_name: pgadmin
image: dpage/pgadmin4
environment:
- PGADMIN_DEFAULT_EMAIL=pgadmin4@pgadmin.org
- PGADMIN_DEFAULT_PASSWORD=admin
ports:
- "5050:80"
depends_on:
- db

The above configuration will create a cluster with 3 containers

  1. web container — where the actual code will run
  2. db container
  3. pgadmin container

Now in your current directory you should see 5 files

  1. Pipfile
  2. Pipfile.lock
  3. Dockerfile
  4. docker-compose.yml
  5. main.py

Now lets build the docker cluster, by running the following command in the terminal

docker-compose build

Alembic

Let initialize Alembic by running the following cmd in the terminal in the same directory

alembic init alembic

that will create following a directory called alembic and config file alembic.ini

Image for post
Image for post

open the alembic.ini file with your editor and change line 38 from

sqlalchemy.url = driver://user:pass@localhost/dbname

to

sqlalchemy.url =

and we will add the postgres db url in the alembic/env.pyfile

since we are creating configuration that should work in production, we will not be able to push the alembic.ini file with database username and password in it. We will need to read that from the environment variables instead and that we can do in alembic/env.py

lets install python-dotenv

pipenv install python-dotenv

since we added a new package lets rebuild docker to include it

docker-compose build

lets create a .env file

and add the following to it

DATABASE_URL = postgresql+psycopg2://postgres:postgres@db:5432

How did we figure out the database url?

DATABASE_URL = postgresql+psycopg2://{user}:{password}@{host}:{port}

if we check the docker-compose.yml config for the database

db:
image: postgres:11
ports:
- "5432:5432"
environment:
- POSTGRES_USER=postgres
- POSTGRES_PASSWORD=postgres
- POSTGRES_DB=test_db

we will see that user=postgres , password=postgres and since we are in the docker world, the database host will not be localhost but the name of the container, in our case we named it db

so lets add this line to our .env

DATABASE_URL = postgresql+psycopg2://postgres:postgres@db:5432

Open alembic\env.py and it should look like this

from logging.config import fileConfig

from sqlalchemy import engine_from_config
from sqlalchemy import pool

from alembic import context

# this is the Alembic Config object, which provides
# access to the values within the .ini file in use.
config = context.config

# Interpret the config file for Python logging.
# This line sets up loggers basically.
fileConfig(config.config_file_name)

# add your model's MetaData object here
# for 'autogenerate' support
# from myapp import mymodel
# target_metadata = mymodel.Base.metadata
target_metadata = None

We will need to make changes as follows

from logging.config import fileConfig

from sqlalchemy import engine_from_config
from sqlalchemy import poolfrom alembic import context
# ---------------- added code here -------------------------#
import os, sys
from dotenv import load_dotenv

BASE_DIR = os.path.dirname(os.path.dirname(os.path.abspath(__file__)))
load_dotenv(os.path.join(BASE_DIR, ".env"))
sys.path.append(BASE_DIR)
#------------------------------------------------------------## this is the Alembic Config object, which provides
# access to the values within the .ini file in use.
config = context.config
# ---------------- added code here -------------------------#
# this will overwrite the ini-file sqlalchemy.url path
# with the path given in the config of the main code
config.set_main_option("sqlalchemy.url", os.environ["DATABASE_URL"])
#------------------------------------------------------------## Interpret the config file for Python logging.
# This line sets up loggers basically.
fileConfig(config.config_file_name)

# add your model's MetaData object here
# for 'autogenerate' support
# from myapp import mymodel
# target_metadata = mymodel.Base.metadata
# ---------------- added code here -------------------------#
import models
#------------------------------------------------------------#
# ---------------- changed code here -------------------------#
# here target_metadata was equal to None
target_metadata = models.Base.metadata
#------------------------------------------------------------#

Models

Now lets create our Models to be migrated to PostgreSQL

models.py

from sqlalchemy.ext.declarative import declarative_base
from sqlalchemy import Column, Integer, String
Base = declarative_base()
class User(Base):
__tablename__ = "users"
id = Column(Integer, primary_key=True, index=True)
first_name = Column(String,)
last_name = Column(String)
age = Column(Integer)

Now lets make our first migration

docker-compose run web alembic revision --autogenerate -m "First migration"
Image for post
Image for post

if the command ran successfully you should see a new file generated under versions

Image for post
Image for post

lets run the migration

docker-compose run web alembic upgrade head
Image for post
Image for post

Pgadmin

in order to check our created migrations

run in terminal

docker-compose upand wait a little, it takes some time to load.

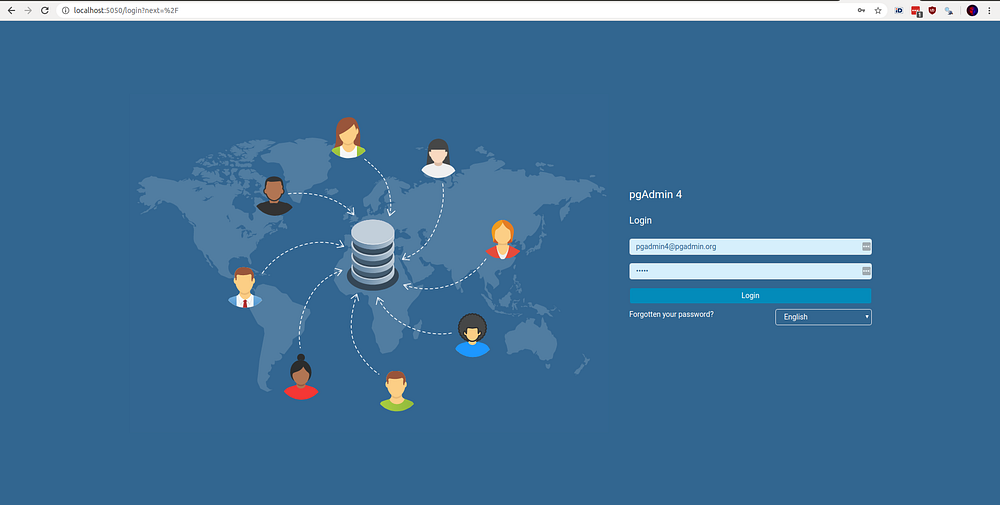

go to localhost:5050

and login with user=pgadmin4@pgadmin.org and password=admin

again we did set this up before in our docker-compose.yml

pgadmin:
container_name: pgadmin
image: dpage/pgadmin4
environment:
- PGADMIN_DEFAULT_EMAIL=pgadmin4@pgadmin.org
- PGADMIN_DEFAULT_PASSWORD=admin
ports:
- "5050:80"
depends_on:
- db
Image for post
Image for post

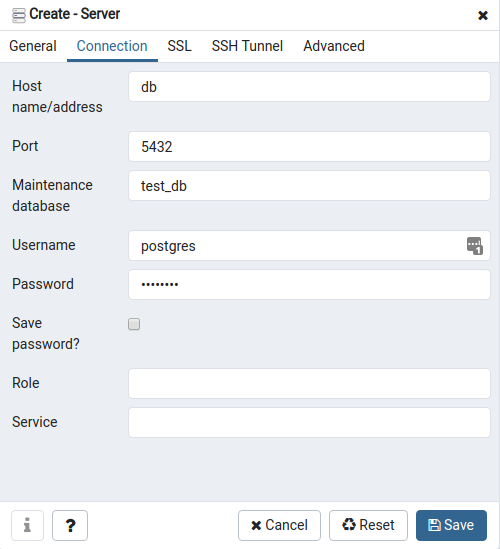

In general change choose a name for the connection

Connect to database server, password is postgres as well

Image for post
Image for post

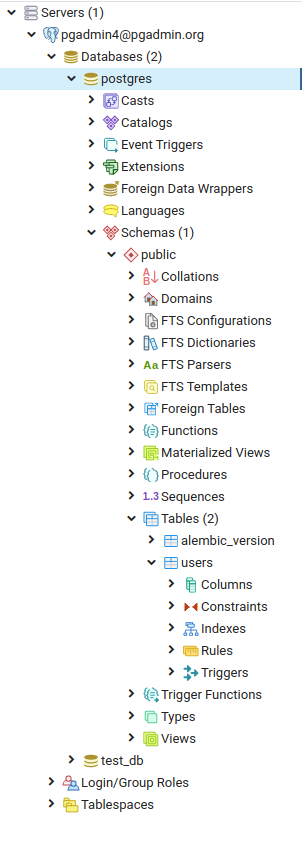

lets find our users table

Servers > {your-connection-name} >Databases > postgres >Schemas >public>Tables >users

Image for post
Image for post
Image for post
Image for post

Now we can surely say that our migration is a success.

now we have fully implemented ORM with Alembic migrations, Awesome. Next step is to connect it to Pydantic schema.

Schema — Pydantic Model

schema.py

from pydantic import BaseModel


class User(BaseModel):
first_name: str
last_name: str = None
age: int
class Config:
orm_mode = True

Notice that we have Config class where we set orm_mode=True and is all what we need for Pydantic models, without Sqlalchemy model objects will not be serialized to JSON.

Lets connect everything in main.py

import uvicorn
from fastapi import FastAPI
#--------------- added code ------------------------#
import os
from fastapi_sqlalchemy import DBSessionMiddleware
from fastapi_sqlalchemy import db
from models import User as ModelUser
from schema import User as SchemaUser
from dotenv import load_dotenv

BASE_DIR = os.path.dirname(os.path.abspath(__file__))
load_dotenv(os.path.join(BASE_DIR, ".env"))
#---------------------------------------------------#

app = FastAPI()
#--------------- added code ------------------------#
app.add_middleware(DBSessionMiddleware, db_url=os.environ["DATABASE_URL"])
#---------------------------------------------------#
#--------------- modified code ---------------------#
@app.post("/user/", response_model=SchemaUser)
def create_user(user: SchemaUser):
db_user = ModelUser(
first_name=user.first_name, last_name=user.last_name, age=user.age
)
db.session.add(db_user)
db.session.commit()
return db_user
#---------------------------------------------------#

if __name__ == "__main__":
uvicorn.run(app, host="0.0.0.0", port=8000)

great lets run it again

docker-compose up

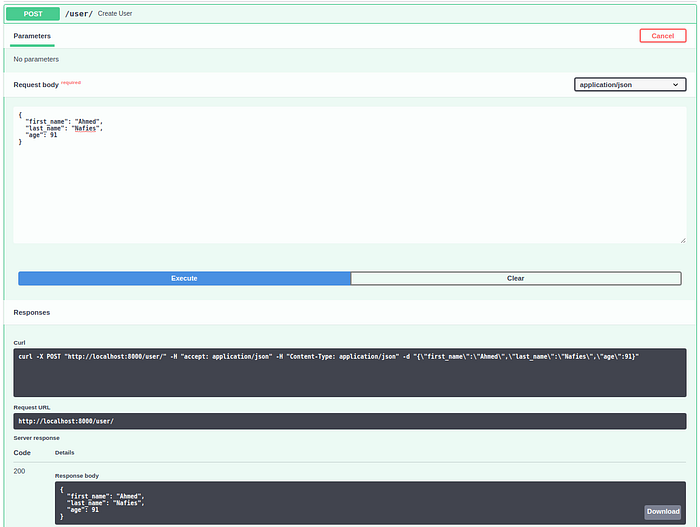

now lets go to \docs and invoke Create User endpoint

Image for post
Image for post

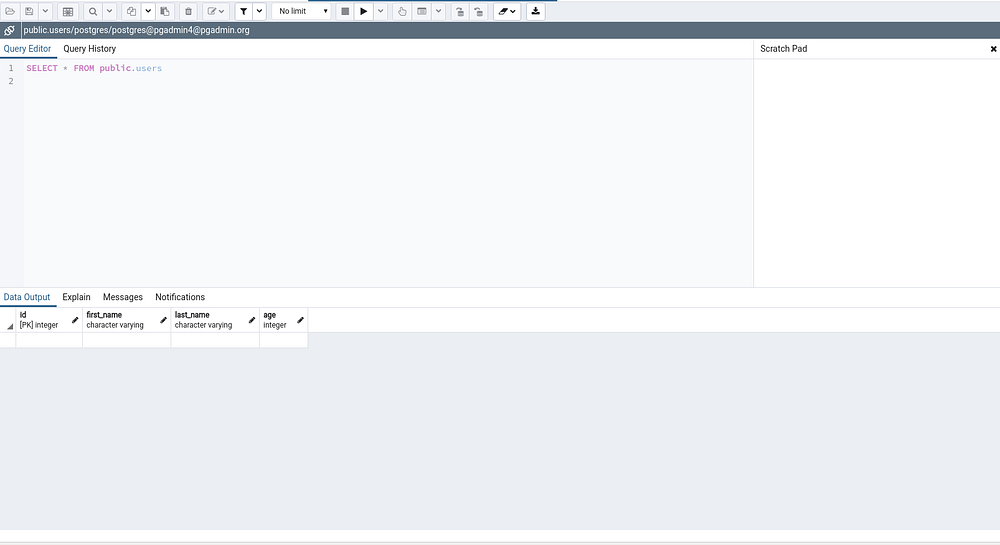

Awesome, lets check from pgadmin if it actually worked

go to localhost:5050

Image for post
Image for post

I hope that this tutorial was comprehensive enough on how to use FastAPI with PostgreSQL, SQLAlchemy and Alembic.

The full code for this article is here on github.

In Part-2 we will discuss how to work with databases asynchronously.
